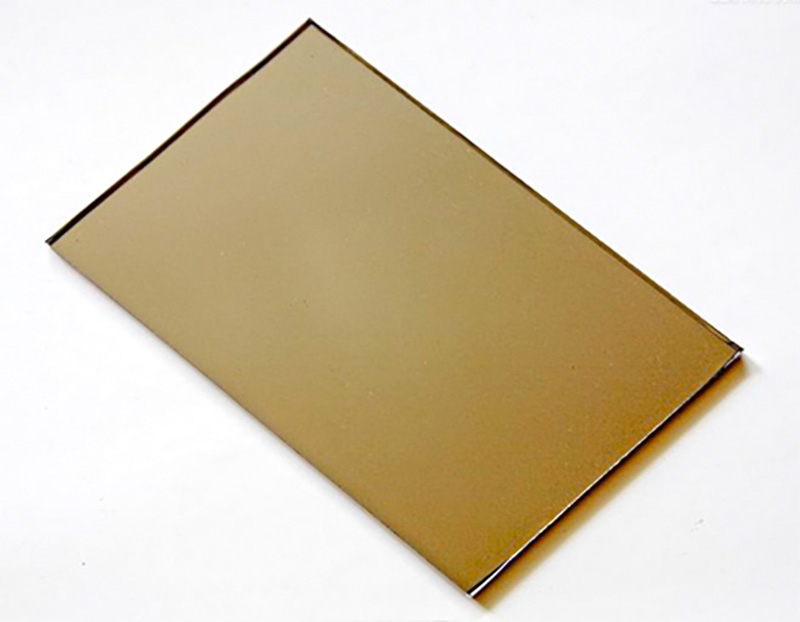

Dark Bronze Reflective Glass China Manufacturer

BRAND: SSMG
GRADE:CLASS-A
COLOR: DARK BRONZE
THICKNESS:4 MM-12 MM
FILM SYSTEM: SUN CONTROL

Dark Bronze Reflective Glass Size(mm):

1650*2140 1650*2250 1650*2440
1830*2140 1830*2250 1830*2440
3300*2140 3300*2250 3300*2440
3660*2140 3660*2250 3660*2440
CUSTOM SIZE
SEND QUICKLY REQUESTS

Description

SSM GLASS—SUN CONTROL DARK BRONZE REFLECTIVE GLASS

The on-line sunlight-controlled coated glass is prepared by chemical vapor deposition (CVD) process, in which silica-based coating materials are introduced into the surface of high-temperature glass in the form of gas to form a layer of silica film. The product has a good control effect on sunlight and excellent sun shading function. Its high temperature film forming technology gives the product stable physical and chemical properties. It can be widely used in various types of building curtain walls, doors and windows.

Applications

The product has good chemical stability, strong and durable film, hot bending, toughening, and monolithic application. It is “hard coated” glass made by high temperature pyrolysis CVD method.

SSM GLASS—SUN CONTROL DARK BRONZE REFLECTIVE GLASS can be used extensively in applications such as

Advantages

  • Excellent optical and thermal properties.

  • Excellent chemical stability.

  • Extremely strong abrasion resistance.

  • Uniform color, soft and elegant color.

  • High temperature chemical film forming,unique hot processing properties such as tempering and hot bending.

Techonlogy

SUN CONTROL REFLECTIVE GLASS-THERMOTECHNICAL AND OPTICS PERFORMANCE

COLOR U-value W/m2K SC SHGC Solar energ y(NRFC) Visible Light Sunlight-Directtrans mittance UV-trans mittance
Tansmittance Reflectivity
5 MM DARK GRAY REFL. 5.51 0.55 0.48 0.55 22 13 0.31 0.06
6MM DARK GRAY REFL. 5.49 0.48 0.42 0.42 19 11 0.21 0.05
5MM FORD BLUE REFL. 5.51 0.53 0.46 0.52 25 21 0.3 0.06
6MM FORD BLUE REFL. 5.49 0.48 0.42 0.47 21 21 0.24 0.04
5MM DARK GREEN REFL. 5.39 0.46 0.4 0.4 28 24 0.23 0.06
5MM SKY BLUE REFL. 5.51 0.51 0.44 0.51 28 32 0.3 0.05
6MM SKY BLUE REFL. 5.49 0.49 0.442 0.48 25 30 0.26 0.05
5MM EURO BRONZE REFL. 5.51 0.59 0.52 0.59 32 21 0.39 0.07
6MM EURO BRONZE REFL. 5.49 0.56 0.49 0.57 24 14 0.33 0.04
5MM LIGHT GREEN REFL. 5.39 0.53 0.46 0.5 34 28 0.31 0.06
5MM EURO GRAY REFL. 5.51 0.57 0.5 0.56 27 13 0.34 0.07
6MM EURO GRAY REFL. 5.48 0.51 0.45 0.51 19 13 0.27 0.04
5MM CLEAR REFL. 5.39 0.74 0.65 0.77 50 28 0.59 0.14
6MM CLEAR REFL. 5.36 0.67 0.58 0.71 42 33 0.51 0.12
5MM DARK BLUE REFL. 5.39 0.61 0.53 0.66 21 11 0.4 0.1
6MM DARK BLUE REFL. 5.36 0.5 0.43 0.49 20 10 0.27 0.04
SUN CONTROL (2)+12A+CLEAR GLASS
5MM DARK GRAY REFL.+12A+5MM CLEAR(AI) 2.7 0.43 0.37 0.43 21 13 0.26 0.05
6MM DARK GRAY REFL.+12A+6MM CLEAR(AI) 2.69 0.34 0.3 0.3 18 12 0.18 0.04
5MM FORD BLUE REFL.+12A+5MM CLEAR(AI) 2.7 0.41 0.36 0.41 23 22 0.26 0.05
6MM FORD BLUE REFL.+12A+6MM CLEAR(AI) 2.69 0.36 0.31 0.35 19 21 0.2 0.04
5MM DARK GREEN REFL.+12A+5MM CLEAR(AI) 2.66 0.35 0.31 0.29 26 25 0.2 0.05
5MM SKY BLUE REFL.+12A+5MM CLEAR(AI) 2.7 0.4 0.35 0.4 26 33 0.26 0.05
6MM SKY BLUE REFL.+12A+6MM CLEAR(AI) 2.69 0.38 0.33 0.36 23 30 0.22 0.04
5MM EURO BRONZE REFL.+12A+5MM CLEAR(AI) 2.7 0.49 0.42 0.49 30 21 0.33 0.06
6MM EURO BRONZE REFL.+12A+6MM CLEAR(AI) 2.69 0.44 0.38 0.45 23 15 0.27 0.03
5MM LIGHT GREEN REFL.+12A+5MM CLEAR(AI) 2.66 0.42 0.37 0.39 32 29 0.27 0.05
5MM EURO GRAY REFL.+12A+5MM CLEAR(AI) 2.7 0.45 0.39 0.44 25 14 0.28 0.06
6MM EURO GRAY REFL.+12A+6MM CLEAR(AI) 2.69 0.39 0.34 0.39 18 13 0.22 0.04
5MM CLEAR REFL.+12A+5MM CLEAR(AI) 2.7 0.6 0.53 0.64 42 40 0.46 0.12
6MM CLEAR REFL.+12A+6MM CLEAR(AI) 2.65 0.499 0.43 0.55 20 12 0.33 0.08
5MM DARK BLUE REFL.+12A+5MM CLEAR(AI) 2.66 0.49 0.43 0.55 20 12 0.33 0.08
6MM DARK BLUE REFL.+12A+6MM CLEAR(AI) 2.65 0.38 0.33 0.38 19 10 0.22 0.04
