Project Description
Anti-Reflective Glass China Manufacturer
BRAND: SSMG
GRADE:CLASS-A
COLOR: EXTRA CLEAR
FILM SYSTEM：ANTI-REFLECTIVE D/S
THICKNESS:3 MM-19 MM
Anti-Reflective Glass Size(mm):
| 1650*2140 | 1650*2250 | 1650*2440 |
| 1830*2140 | 1830*2250 | 1830*2440 |
| 3300*2140 | 3300*2250 | 3300*2440 |
| 3660*2140 | 3660*2250 | 3660*2440 |
| CUSTOM SIZE | ||
Description
SSM GLASS—ANTI-REFLECTIVE GLASS is a kind of anti-reflective coating formed on the surface of glass by immersion plating. Compared with the original glass, the reflectivity of the glass surface is greatly reduced, and the transmittance.
There have 2 kinds of film system ANT-REFLECTIVE -D AND ANTI-REFLECTIVE-S
On-line hard anti-reflective (AR) coated glass is a new combination of hard anti-reflective coatings and ultra-white float glass. Using the world’s leading on-line coating technology, high temperature chemical vapor deposition (CVD), an inorganic anti-reflective film is deposited on the high-quality ultra-white glass substrate. The film is hard, durable and neutral in color. It can effectively reduce the reflection of visible light and increase the transmittance of visible light.
Applications
It has excellent penetrability, keeps the image real and reduces the specular reflection of glass.
SSM GLASS—ANTI-REFLECTIVE GLASS can be used extensively in applications such as
| ANTI-REFLECTIVE GLASS-D(DOUBLE) | ANTI-REFLECTIVE GLASS-S(SINGLE) |

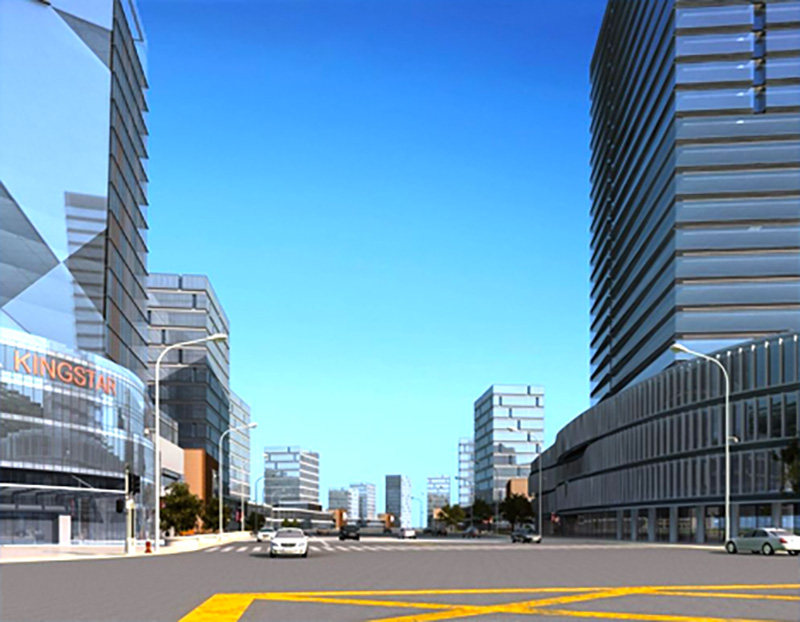

| Exhibition hall and display window. | Building curtain wall glass |

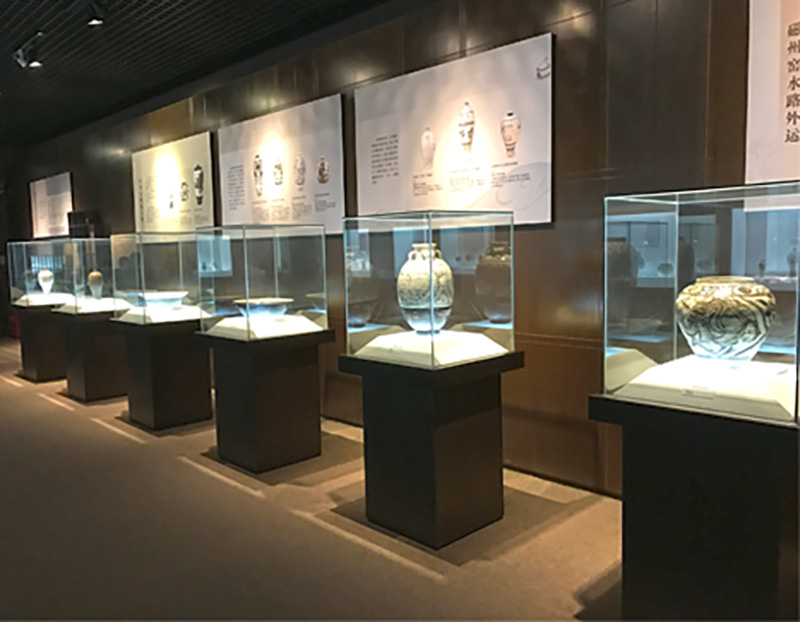

| Museum showcase glass | Museum showcase glass |
| picture frame glass | Exhibition hall and display window. |
| Solar photovoltaic glass | |
| Electronic information board |
Advantages
SSM GLASS—TINTED FLOAT GLASS can be used extensively in applications such as;
| Exterior decoration of the Buildings | Interior decoration of the Buildings |
| Furniture products | windows and door |
| Curtain wall | Color Mirror |
| Arts and Crafts | |
Advantages
Reduce the reflection image, which appears to improve visual acuity without glass.
Make objects more realistic and colorful.
he international advanced high temperature chemical vapor deposition (CVD) on-line coating technology is adopted.
All machinability is basically the same as that of raw glass (tempered, hollow, adhesive, etc.).
the film is uniform and neutral, and has no color difference. The surface is light and greasy.
Easy to re-process, can meet different needs of hot bending, tempering, sandwich and other re-processing operations.

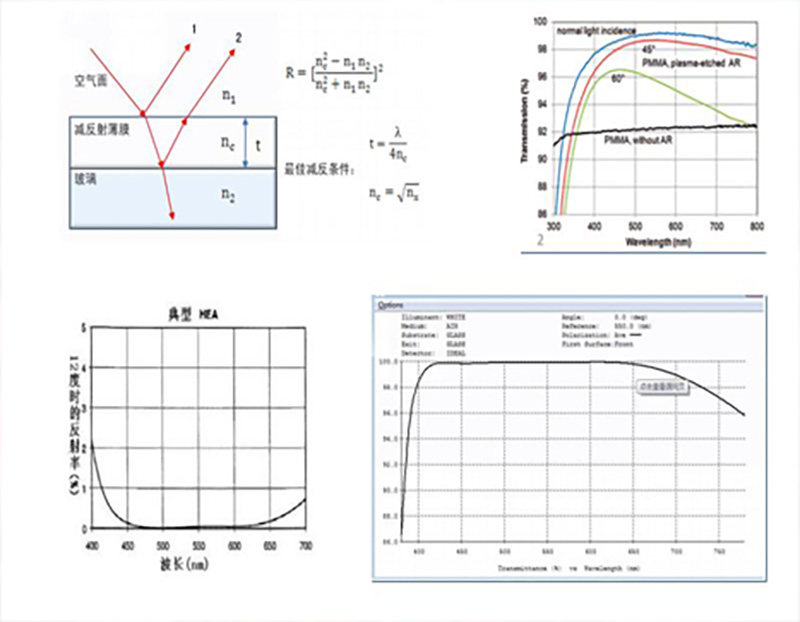

Techonlogy
AR-S VS CLEAR GLASS
| Glass | Thickness | Visible Light | Solar Radiant
Coefficient |
||
| (MM) | Transmittance | Reflectivity | Direct
Penetration |
Refle
ctivity |
|
| Clear float glass | 3.2 | 90.2% | 8.2% | 87.6% | 7.8% |
| AR-S Glass | 3.2 | 92.8% | 6.7% | 91.7% | 6.9% |
| Clear float glass | 4 | 90.0% | 8.2% | 86.4% | 7.7% |
| AR-S Glass | 4 | 92.6% | 6.6% | 90.7% | 6.8% |
| Clear float glass | 6 | 89.0% | 8.0% | 77.8% | 7.2% |
| AR-S Glass | 6 | 92.6% | 6.7% | 90.5% | 6.7% |
AR-S LAMINATED GLASS VS
CLEAR LAMINATED GLASS
| Laminated glass | Thickness | Visible Light | UV Penetration | ||
| （MM） | Transmittance | Reflectivity | Absorb | ||
| 4 MM Clear+0.76 PVB+4 MM clear | 8.76 | 90.7% | 8.5% | 1.5% | <1% |
| 4 MM AR-S+0.76 PVB+4 MM AR-S | 8.76 | 93.5% | 5.2% | 1.5% | <1% |
| 6 MM Clear+0.76 PVB+6 MM clear | 12.76 | 90.5% | 8.3% | 1.2% | <1% |
| 6 MM AR-S+0.76 PVB+6 MM AR-S | 12.76 | 93.3% | 5.1% | 1.6% | <1% |
