Pdlc Laminated Glass

Pdlc Laminated Glass China Manufacturer

BRAND: SSMG
GRADE:CLASS-A
THICKNESS: 4 MM-19 MM (GLASS)
THICKNESS:0.76-2.28MM (PVB)

Pdlc Laminated Glass Size

MIN	100 MM*150 MM
MAX	1800MM*3500MM

SEND QUICKLY REQUESTS

Description

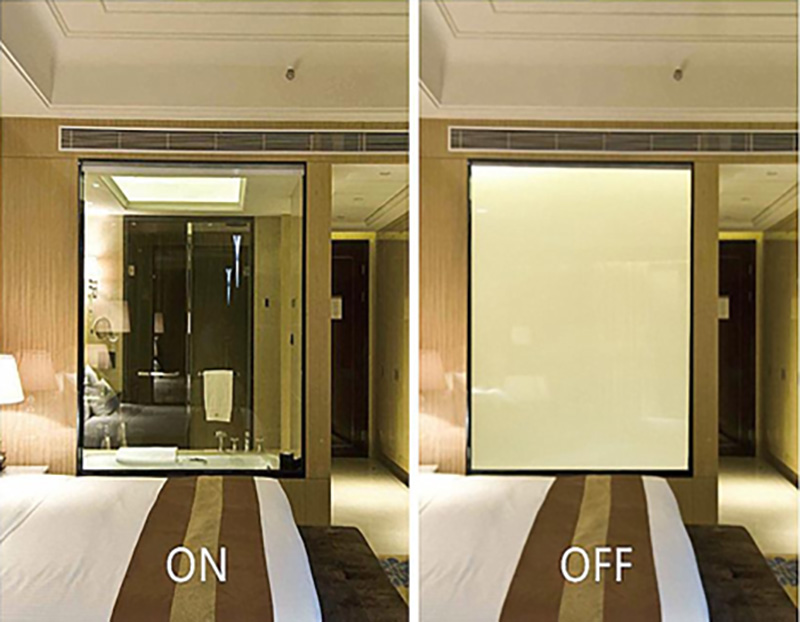

Smart PDLC glass is same with the self-adhesive film,more safety,it can manage transparency instantly in response to user demand for seclusion, privacy or confidentiality without compromising light transmission. User just turns the Smart Film “on” for transparent glass and “off” for opaque glass in a within one second by a power switch. Smart PDLC glass stucture:glass+smart pdlc film+glass, they are used for window, hotel and so on;

Can use to Car, House Window, Building Skylight, Meeting Room, Office, Hospital ,Bank, Bathroom,Projector Film

Techonlogy

SWITCHABLE PDLC FILM AND GLASS SPECIFICATION

PRODUCT DESCRIPTION		NON-ADHESIVE SWITCHABLE PDLC FILM		SELF-ADHESIVE SWITCHABLE PDLC FILM		SWITCHABLE PDLC GLASS		ULTRA CLEAR SWITCHABLE PDLC FILM
OPERATION MODEL	POWER ON	TRANSPARENT
	POWER OFF	OPAQUE
	AVALIABLE COLOR	MILKY WHITE	DARK GRAY	MILKY WHITE	DARK GRAY	MILKY WHITE	DARK GRAY	MILKY WHITE
SPECIFICATION	MAXMIUM SIZE	1.8M*30M		1.5M*30M		1.8M*3.5M		1.8M*30M
	THICKNESS	0.36MM		0.36MM		4+4,5+5,6+6,8+8,		0.36MM
	TRANSMITTANCE(POWER ON)	78%	71%	78%	71%	78%	71%	79%
	TRANSMITTANCE(POWER OFF)	4%	4%	4%	4%	4%	4%	4%
	HAZE (ON MODEL)	5%	5%	5%	5%	5%	5%	3%
	VIEW ANGLE	ABOUT 145 DEGREE						ABOUT 165DEGREE
	SWITCH TIME	LESS THAN 1 SECOND (OFF>ON:ABOUT 200 MILLISECONDS/ON>OFF ABOUT 600 MILLISECONDS)
	LIFE TIME	MORE THAN 100000 H (20 YEARS)
ELECTRICAL	OPERATING TEMERATURE	TEMPERATURE:-20 °C TO 60°C
	OPERATING VOLTAGE	AC 65+-5 V
	FRENQUENCY RATE	50-60HZ
	POWER CONSUMPTION	ABOUT 3.7W/SQ.M
GREEN MATERIAL FUNCTION	UV BLOCK	ON MODEL>83% OFF MODEL>99%
	INFRARED BLOCCK	ON MODEL>20% OFF MODEL>90%
	DIMMER FUNCTION	YES
	PROJECTION SCREEN	YES
