Project Description
Description
Insulating glass is made up of two or more layers of flat glass. High-strength and high-air-tightness compound binder is used to bond and seal two or more pieces of glass with sealing strip and glass strip. The dry gas is filled in the middle, and the dryer is filled with the dryer to ensure the air drying degree between the glass sheets. The original glass sheets with different properties can be selected according to the requirements, such as colorless transparent float glass embossed glass, heat absorbing glass, heat reflecting glass, filament glass, toughened glass and frame (aluminum frame or glass strip, etc.), which are bonded, welded or welded.

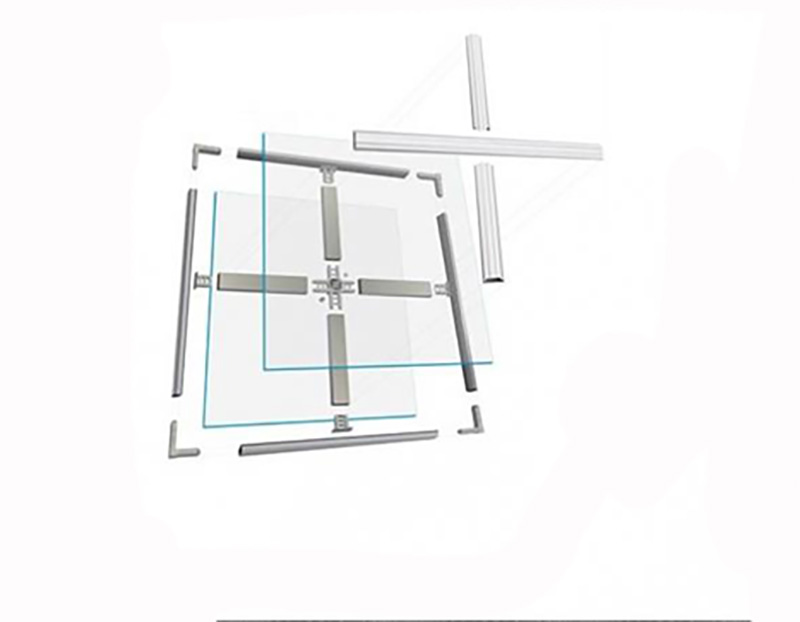

Its structure is like a double deck hollow glass profile. Hollow glass can be used 3, 4, 5, 6, 8, 10, 12 mm thick flake glass, air layer thickness can be used 6, 9, 12 mm interval.
The heat conductivity of glass is 27 times that of air. As long as the insulating glass is sealed, the insulating glass is the best.

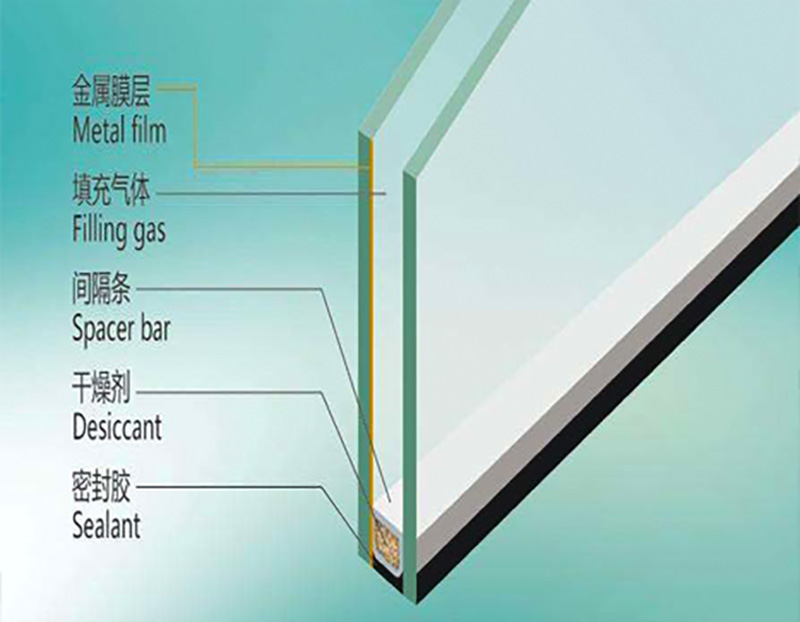

There is a certain space between the glass and the glass of the insulating glass. The box is filled with desiccant to ensure dry air between the glass sheets. The two layer spacing of insulating glass is generally 8mm.
High performance hollow glass is different from ordinary hollow glass. In addition to sealing dry air in the middle of two layers of glass, a special metal film with good thermal performance should be coated on the side of the air layer in the middle of the outer glass. It can cut off the equivalent energy from the sun to the interior and play a greater role in thermal insulation.
GLASS :According to the design requirements, combined with our product technical indicators selection
SPACER:6MM,8MM,9MM,10MM,12MM,16MM,18MM,24MM, OTHER AS CUSTOM DESIGN,ALUM SPACER OR WARM SIDE SPACER
SPACER AIR : AIR ARGON , VACUUM
Insulating Glass
